(3'R,4S,4'R,5'R,6R,7S)-4-[(1R,2S,3R,5S,6R)-3-amino-2,6-dihydroxy-5-(methylamino)cyclohexyl]oxy-6'-[(1S)-1-amino-2-hydroxyethyl]-6-(hydroxymethyl)spiro[4,6,7,7a-tetrahydro-3aH-[1,3]dioxolo[4,5-c]pyran-2,2'-oxane]-3',4',5',7-tetrol

Table of Contents

Details
Physical and Chemical Properties
Synonyms
2D Structure
3D Structure
ADMET Properties
Targets (proven and/or predicted)
Plants that contains it
Cross-Links

Details

Top
Internal ID 1e032bc8-fc17-4e4f-9c32-902ddac6ce0f
Taxonomy Organic oxygen compounds > Organooxygen compounds > Carbohydrates and carbohydrate conjugates > 2-deoxystreptamine aminoglycosides
IUPAC Name (3'R,4S,4'R,5'R,6R,7S)-4-[(1R,2S,3R,5S,6R)-3-amino-2,6-dihydroxy-5-(methylamino)cyclohexyl]oxy-6'-[(1S)-1-amino-2-hydroxyethyl]-6-(hydroxymethyl)spiro[4,6,7,7a-tetrahydro-3aH-[1,3]dioxolo[4,5-c]pyran-2,2'-oxane]-3',4',5',7-tetrol
SMILES (Canonical) CNC1CC(C(C(C1O)OC2C3C(C(C(O2)CO)O)OC4(O3)C(C(C(C(O4)C(CO)N)O)O)O)O)N
SMILES (Isomeric) CN[C@H]1C[C@H]([C@@H]([C@H]([C@@H]1O)O[C@H]2C3C([C@H]([C@H](O2)CO)O)OC4(O3)[C@@H]([C@@H]([C@H](C(O4)[C@H](CO)N)O)O)O)O)N
InChI InChI=1S/C20H37N3O13/c1-23-7-2-5(21)9(26)15(10(7)27)33-19-17-16(11(28)8(4-25)32-19)35-20(36-17)18(31)13(30)12(29)14(34-20)6(22)3-24/h5-19,23-31H,2-4,21-22H2,1H3/t5-,6+,7+,8-,9+,10-,11+,12-,13-,14?,15-,16?,17?,18-,19+,20?/m1/s1
InChI Key GRRNUXAQVGOGFE-HNKWTKQDSA-N
Popularity 0 references in papers

Physical and Chemical Properties

Top
Molecular Formula C20H37N3O13
Molecular Weight 527.50 g/mol
Exact Mass 527.23263824 g/mol
Topological Polar Surface Area (TPSA) 272.00 Ų
XlogP -6.60
Atomic LogP (AlogP) -7.27
H-Bond Acceptor 16
H-Bond Donor 11
Rotatable Bonds 6

Synonyms

Top
There are no found synonyms.

2D Structure

Top

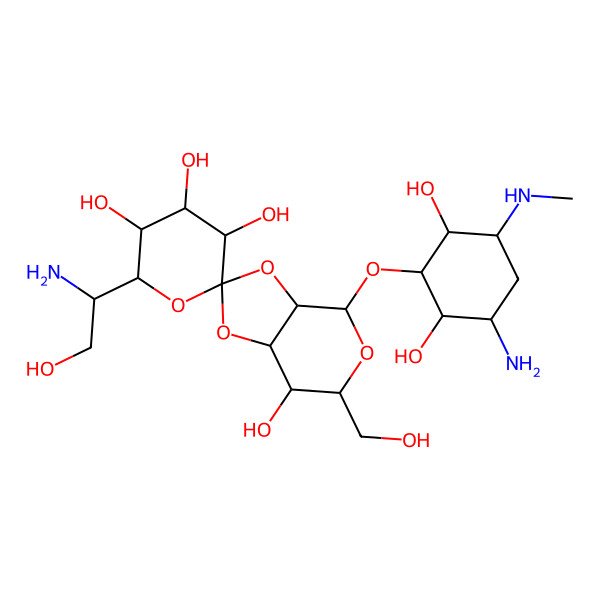

2D Structure of (3'R,4S,4'R,5'R,6R,7S)-4-[(1R,2S,3R,5S,6R)-3-amino-2,6-dihydroxy-5-(methylamino)cyclohexyl]oxy-6'-[(1S)-1-amino-2-hydroxyethyl]-6-(hydroxymethyl)spiro[4,6,7,7a-tetrahydro-3aH-[1,3]dioxolo[4,5-c]pyran-2,2'-oxane]-3',4',5',7-tetrol

3D Structure

Top

ADMET Properties (via admetSAR 2)

Top
Target Value Probability (raw) Probability (%)
Human Intestinal Absorption - 0.8682 86.82%
Caco-2 - 0.8909 89.09%
Blood Brain Barrier - 0.9000 90.00%
Human oral bioavailability - 0.8286 82.86%
Subcellular localzation Lysosomes 0.6336 63.36%
OATP2B1 inhibitior - 1.0000 100.00%
OATP1B1 inhibitior + 0.9413 94.13%
OATP1B3 inhibitior + 0.9512 95.12%
MATE1 inhibitior - 1.0000 100.00%
OCT2 inhibitior - 0.8250 82.50%
BSEP inhibitior - 0.7176 71.76%
P-glycoprotein inhibitior - 0.7512 75.12%
P-glycoprotein substrate - 0.5774 57.74%
CYP3A4 substrate + 0.6267 62.67%
CYP2C9 substrate - 0.7958 79.58%
CYP2D6 substrate - 0.7565 75.65%
CYP3A4 inhibition - 0.9267 92.67%
CYP2C9 inhibition - 0.9023 90.23%
CYP2C19 inhibition - 0.8641 86.41%
CYP2D6 inhibition - 0.8976 89.76%
CYP1A2 inhibition - 0.8822 88.22%
CYP2C8 inhibition - 0.6113 61.13%
CYP inhibitory promiscuity - 0.8175 81.75%
UGT catelyzed - 0.6000 60.00%
Carcinogenicity (binary) - 0.9800 98.00%
Carcinogenicity (trinary) Non-required 0.5854 58.54%
Eye corrosion - 0.9867 98.67%
Eye irritation - 0.9588 95.88%
Skin irritation - 0.7812 78.12%
Skin corrosion - 0.9270 92.70%
Ames mutagenesis - 0.7354 73.54%
Human Ether-a-go-go-Related Gene inhibition + 0.7730 77.30%
Micronuclear + 0.7700 77.00%
Hepatotoxicity + 0.6051 60.51%
skin sensitisation - 0.8453 84.53%
Respiratory toxicity + 0.7000 70.00%
Reproductive toxicity + 0.9444 94.44%
Mitochondrial toxicity + 0.8625 86.25%
Nephrotoxicity - 0.6568 65.68%
Acute Oral Toxicity (c) I 0.8269 82.69%
Estrogen receptor binding + 0.5479 54.79%
Androgen receptor binding + 0.8696 86.96%
Thyroid receptor binding + 0.5506 55.06%
Glucocorticoid receptor binding + 0.6137 61.37%
Aromatase binding + 0.6572 65.72%
PPAR gamma + 0.6154 61.54%
Honey bee toxicity - 0.6129 61.29%
Biodegradation - 0.8250 82.50%
Crustacea aquatic toxicity - 0.5900 59.00%
Fish aquatic toxicity - 0.9211 92.11%

Targets

Top

Proven Targets:

CHEMBL ID UniProt ID Name Min activity Assay type Source
No proven targets yet!

Predicted Targets (via Super-PRED):

CHEMBL ID UniProt ID Name Probability Model accuracy
CHEMBL4040 P28482 MAP kinase ERK2 99.53% 83.82%
CHEMBL5619 P27695 DNA-(apurinic or apyrimidinic site) lyase 98.98% 91.11%
CHEMBL3251 P19838 Nuclear factor NF-kappa-B p105 subunit 98.23% 96.09%
CHEMBL6136 O60341 Lysine-specific histone demethylase 1 97.38% 95.58%
CHEMBL3137262 O60341 LSD1/CoREST complex 96.68% 97.09%
CHEMBL226 P30542 Adenosine A1 receptor 96.13% 95.93%
CHEMBL2996 Q05655 Protein kinase C delta 94.69% 97.79%
CHEMBL4203 Q9HAZ1 Dual specificity protein kinase CLK4 93.26% 94.45%
CHEMBL1907605 P24864 Cyclin-dependent kinase 2/cyclin E1 89.04% 92.88%
CHEMBL3476 O15111 Inhibitor of nuclear factor kappa B kinase alpha subunit 88.79% 95.83%
CHEMBL5608 Q16288 NT-3 growth factor receptor 88.32% 95.89%
CHEMBL221 P23219 Cyclooxygenase-1 88.06% 90.17%
CHEMBL218 P21554 Cannabinoid CB1 receptor 86.12% 96.61%
CHEMBL1907602 P06493 Cyclin-dependent kinase 1/cyclin B1 85.44% 91.24%
CHEMBL5469 Q14289 Protein tyrosine kinase 2 beta 84.86% 91.03%
CHEMBL299 P17252 Protein kinase C alpha 84.69% 98.03%
CHEMBL2955 O95136 Sphingosine 1-phosphate receptor Edg-5 83.14% 92.86%
CHEMBL4016 P42262 Glutamate receptor ionotropic, AMPA 2 82.31% 86.92%
CHEMBL4187 Q99250 Sodium channel protein type II alpha subunit 81.93% 95.50%
CHEMBL4227 P25090 Lipoxin A4 receptor 81.24% 100.00%
CHEMBL3437 Q16853 Amine oxidase, copper containing 81.18% 94.00%
CHEMBL1806 P11388 DNA topoisomerase II alpha 80.47% 89.00%
CHEMBL2111367 P27986 PI3-kinase p110-alpha/p85-alpha 80.14% 94.33%

Plants that contains it

Top
Below are displayed all the plants proven (via scientific papers) to contain this compound!
To see more specific details click the taxa you are interested in.
There are no matching plants.

Cross-Links

Top
PubChem 162883446
LOTUS LTS0184808
wikiData Q105016381
